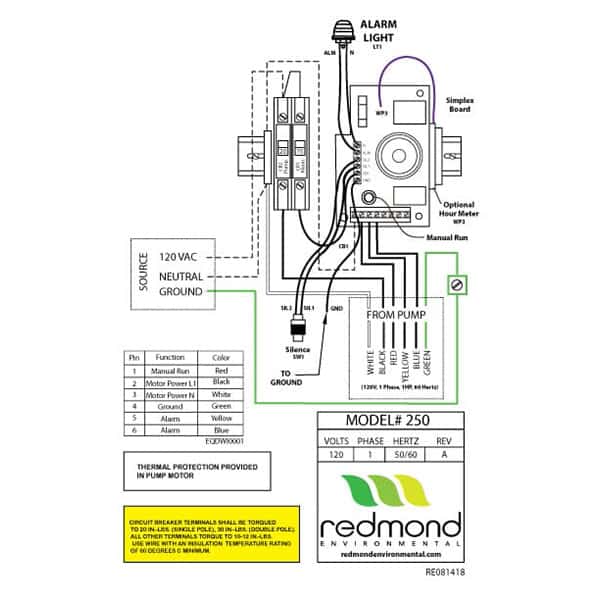

Redmond Control Panel Label 120V
CLICK TO VIEW LARGER
#1065A Control Bracket - Sinpac Switch
CLICK TO VIEW LARGER

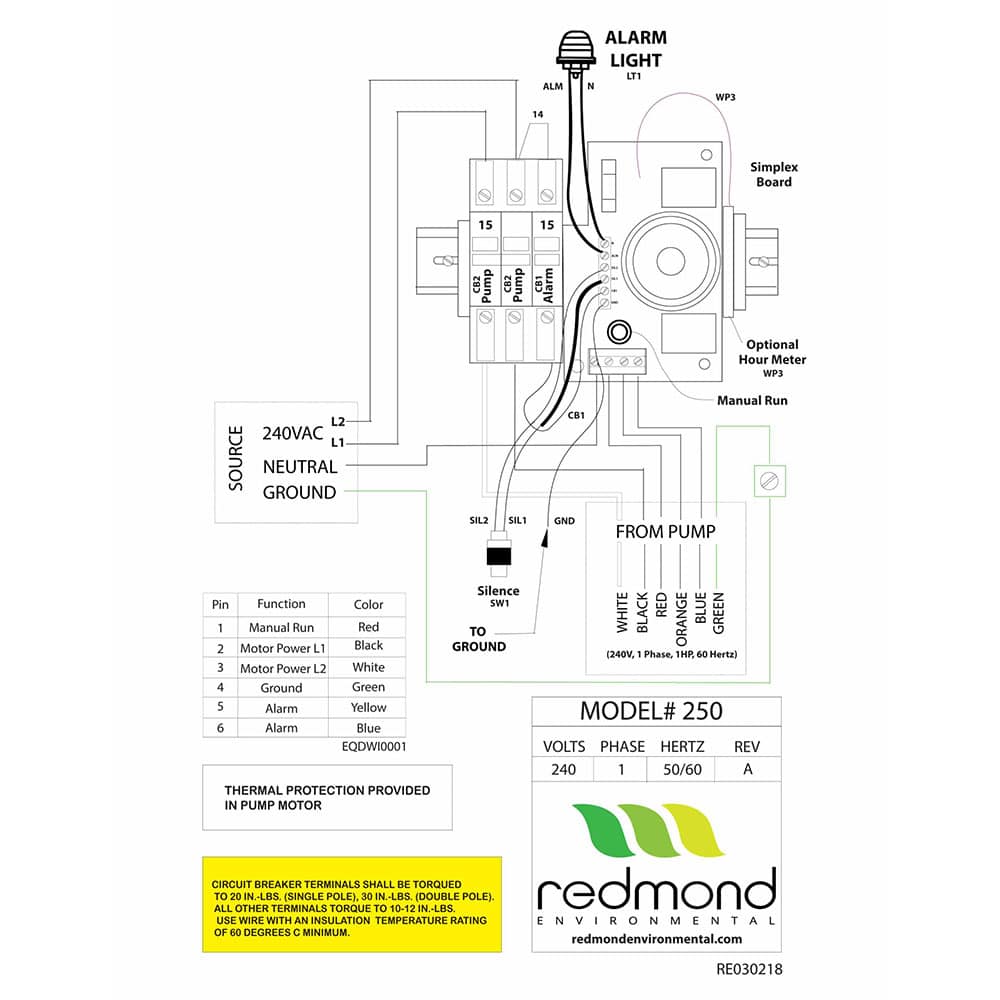

Redmond Control Panel Label 240V
CLICK TO VIEW LARGER

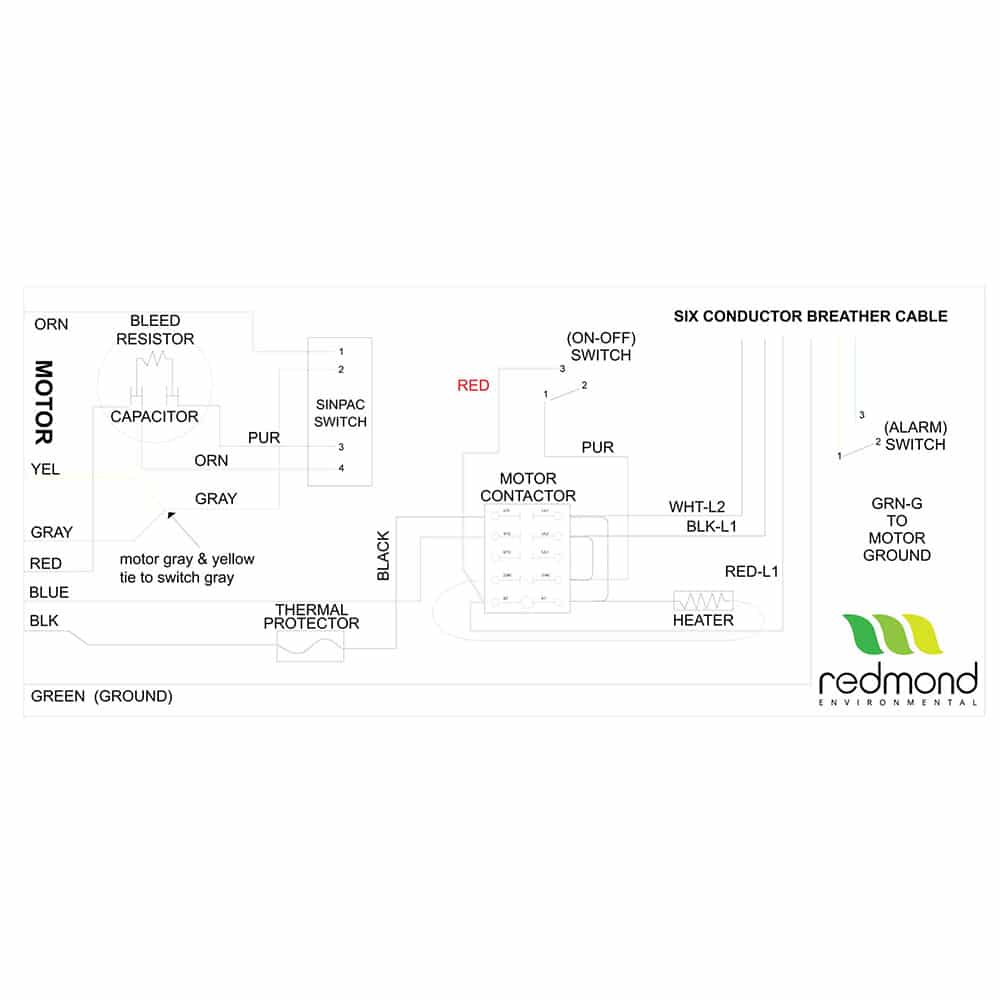

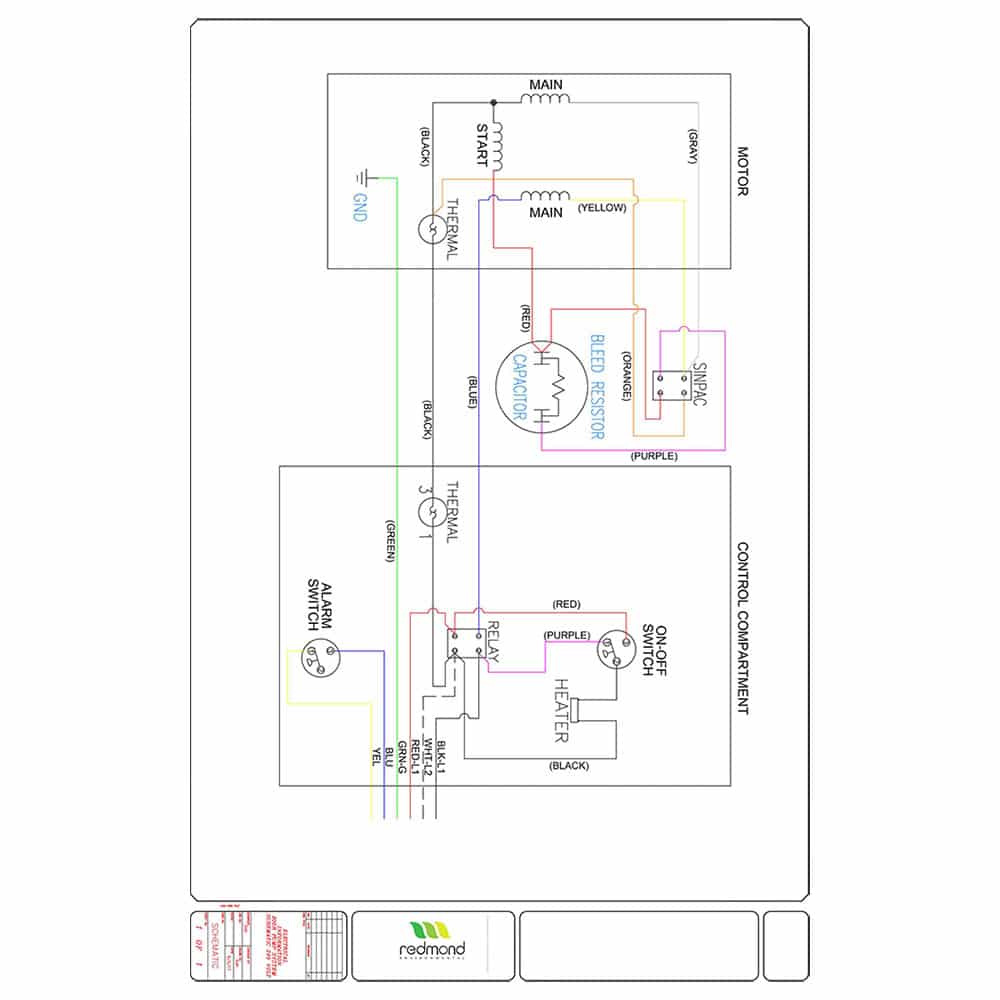

200R Wire Diagram (Sinpac Switch/Solid State Relay)
CLICK TO VIEW LARGER
200R Wire Diagram (Bluffton Switch/Contactor)
CLICK TO VIEW LARGER

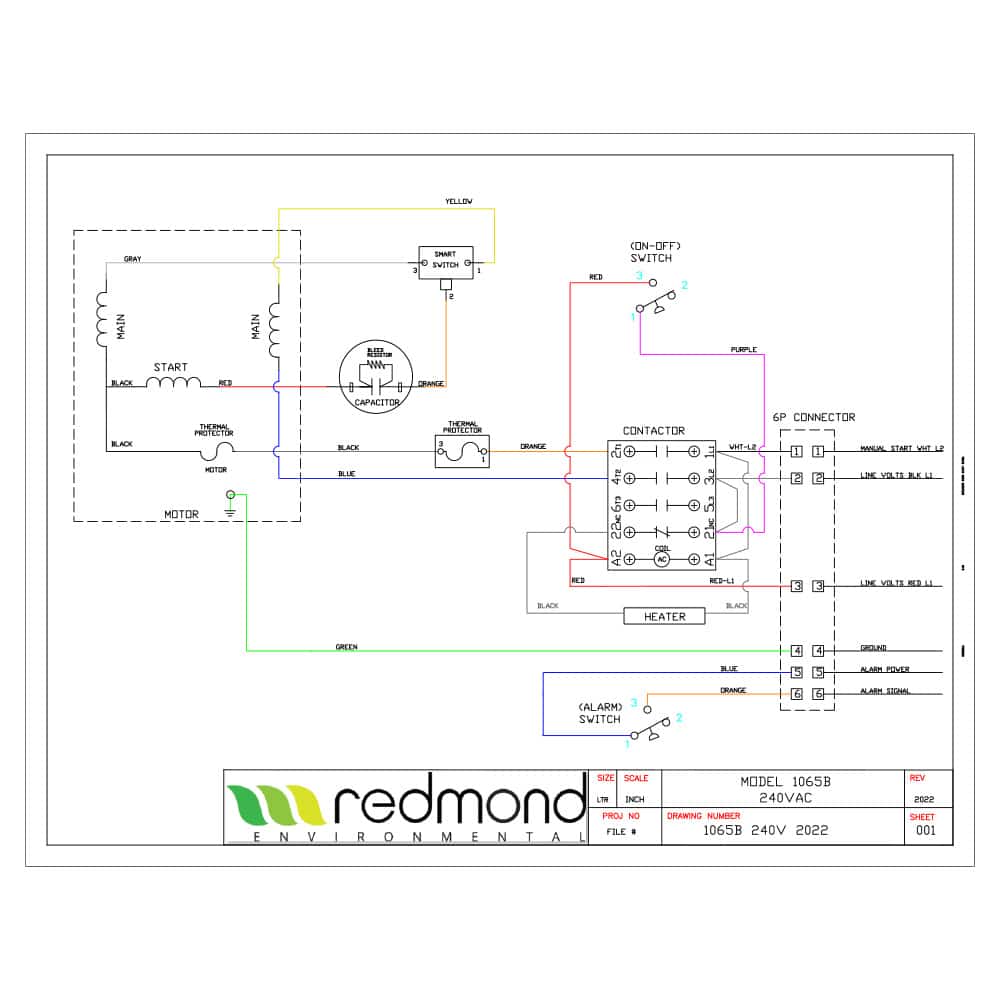

1065B Control Bracket - Buffton Switch
CLICK TO VIEW LARGER

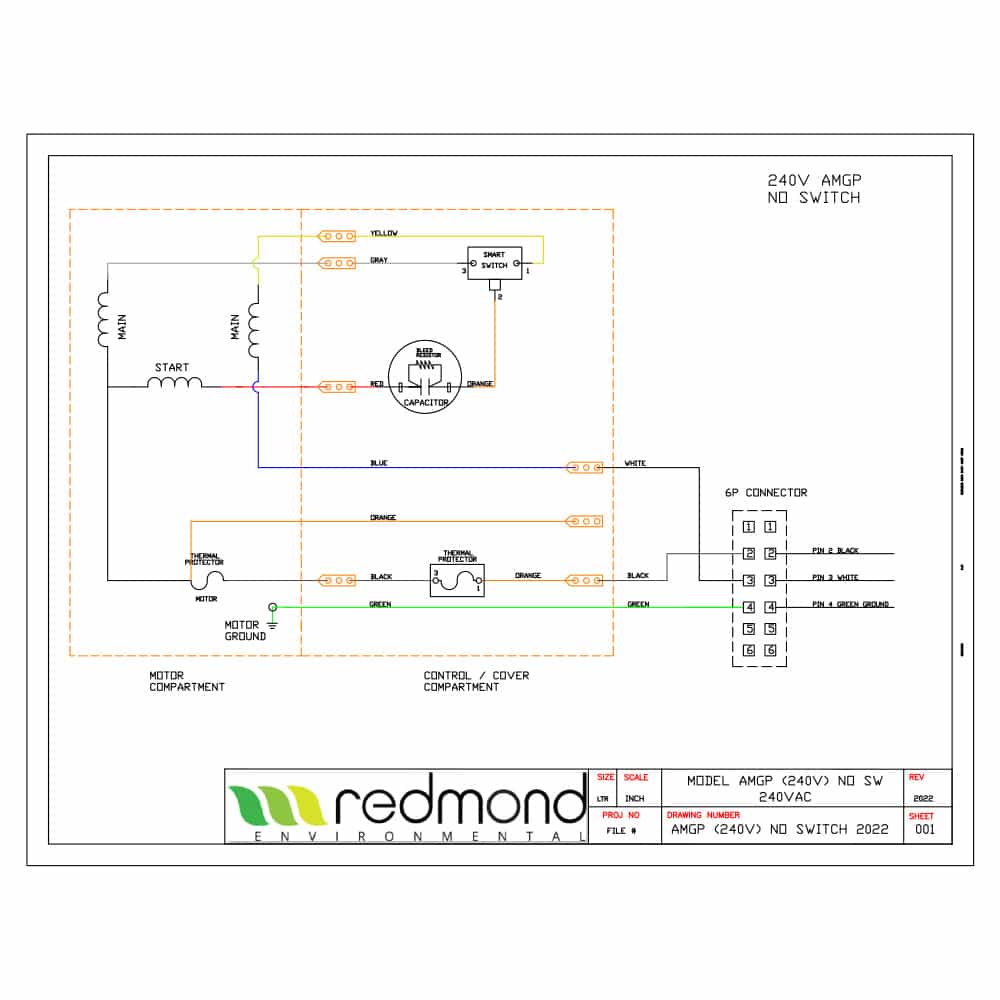

240V No Switch Wire Diagram
CLICK TO VIEW LARGER

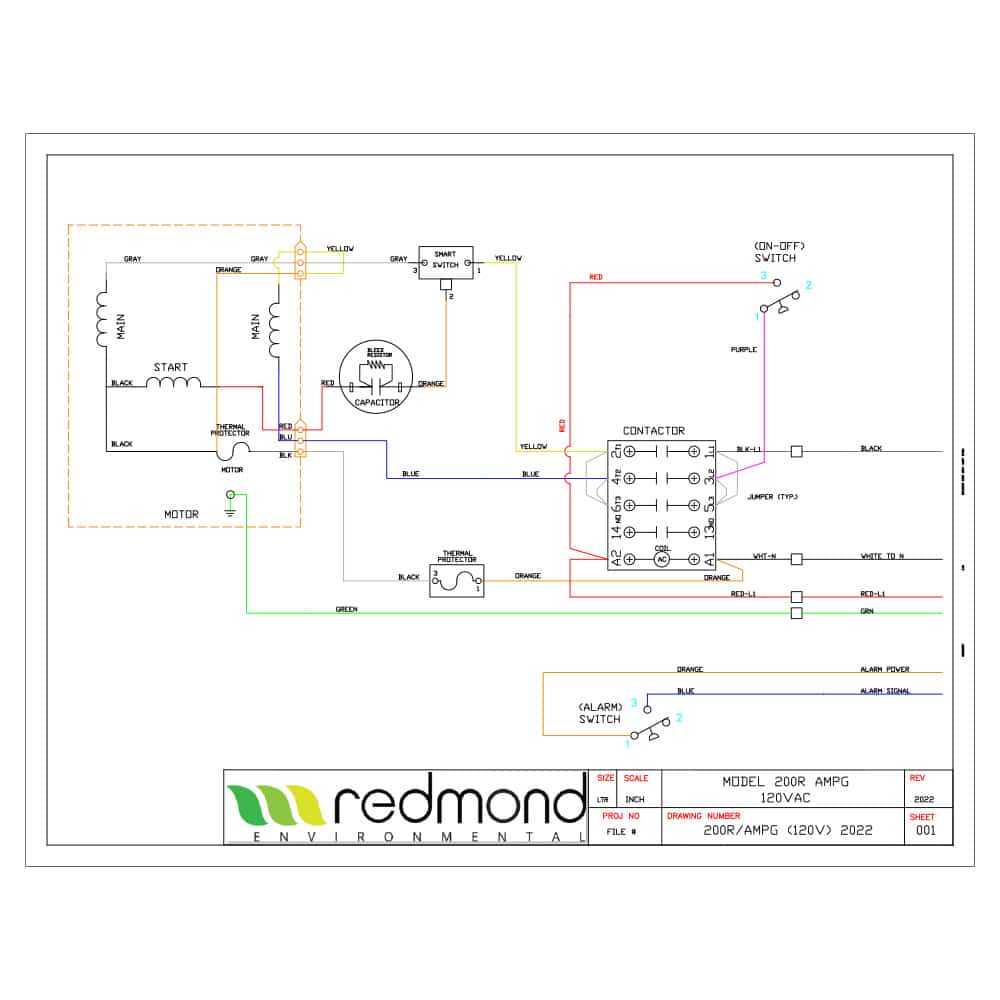

200R - AMGP 120V Wire Diagram
CLICK TO VIEW LARGER

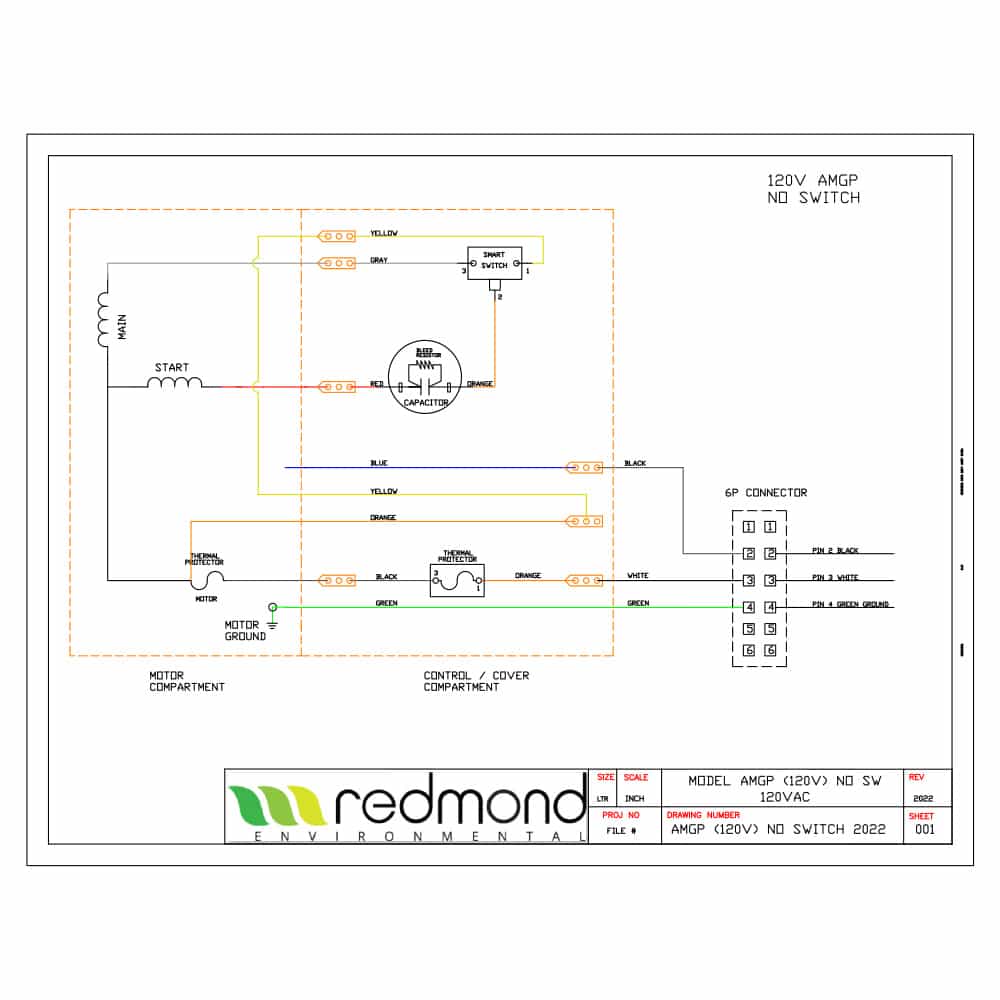

120V No Switch Wire Diagram
CLICK TO VIEW LARGER
